The Tech 22 Gen3 Controller is
a neon sign controller
intended to be
used with the gatable series of Tech 22 neon power supplies to control
brightness, flash or sequence one or more neon tubes.
Tech 22 stocks the most
popular configurations:
Neon dimmers, two, three
and four point chasers, two, three
and four
point spellers, etc.
Other functions may be
defined by sign designer and
implemented by Tech
22. Turnaround time for
customized configurations is minimal,
typically same day to three days.
Application assistance
and service to implement
the more basic functions is
provided at no
cost.
|
POWER REQUIREMENTS
Voltage : 120 VAC, 50/60 Hz
Current : 0.02 A
Power : 2 W
POWER CONNECTIONS
Two AWG 18 leads, 6 inches long.
CONTROL INPUT (OPTIONAL)
Red (+) and black (-) leads can be connected to an
electronic controller (or another Gen3 Controller) or to a
simple switch.
Action of this signal alters the original function and may also be
defined
by the sign designer. For example, activating this input may
switch
to full brightness, stop or reverse animation, modulate brightness of a
chaser, etc.
Maximum "on" voltage : 1.20 V
Minimum "off" voltage : 2.50 V
Control current : 1.6 mA (5V control voltage)
Absolute max. control voltage : 15 V
MANUAL CONTROL
Single turn, 1/4 inch diameter non-conductive shaft is
available for
external control of brightness or animation speed, depending on
required
function.

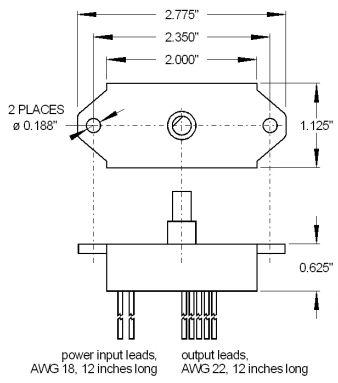

MOUNTING
Unit is mounted in 3/8" diameter hole by two 8-32 screws.
APPROVALS
This Gen3 Controller is listed in the UL Recognized
Components Directory
and in the UL sign acessory manual.
|
